Description

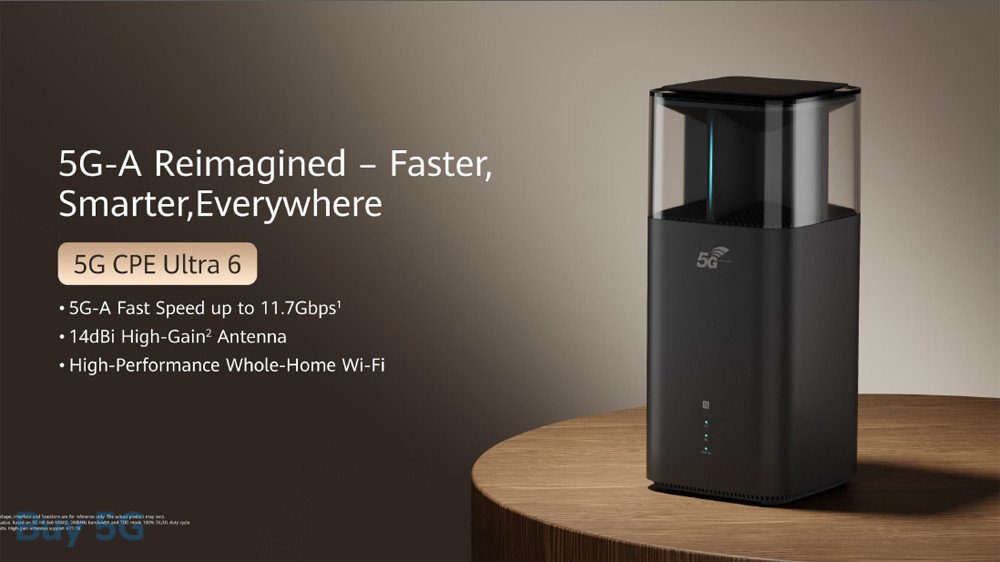

Product Introduction

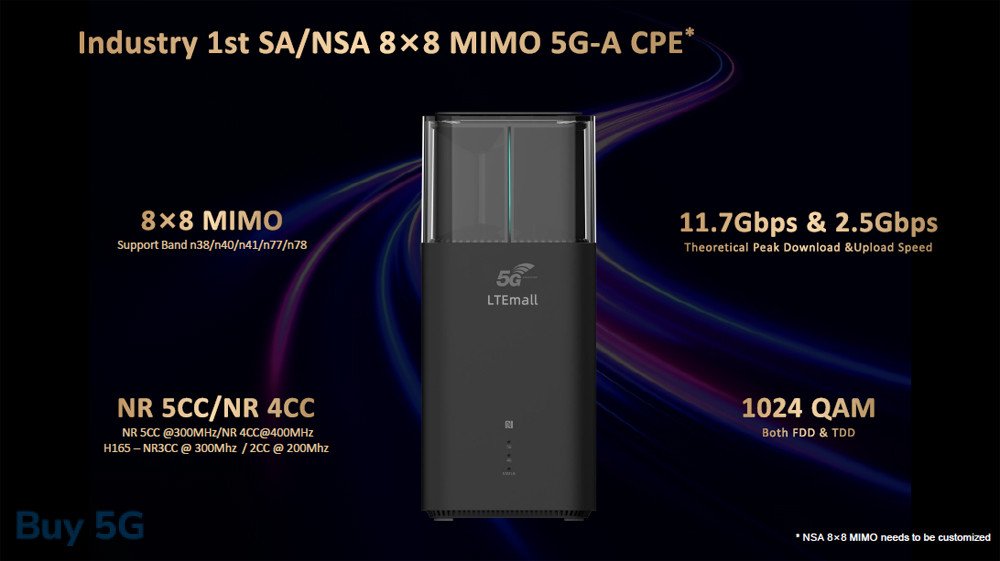

● 5.5G Ready with Record Speeds: It is designed for 5G Advanced (5.5G) networks, supporting peak theoretical downlink speeds up to 11.7 Gbps and features the world’s first 8×8 MIMO and Super Uplink 3.0 for exceptional performance.

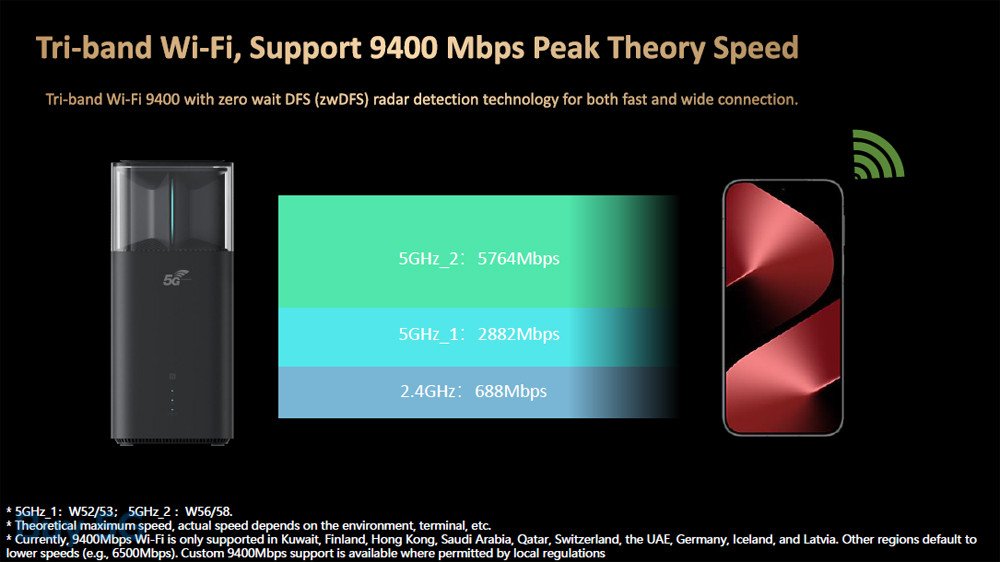

● Latest Wi-Fi 7 Technology: The router utilizes the newest Wi-Fi 7 (802.11be) standard, offering a theoretical combined speed of up to 3600 Mbps and key features like MLO (Multi-Link Operation) and 4K QAM.

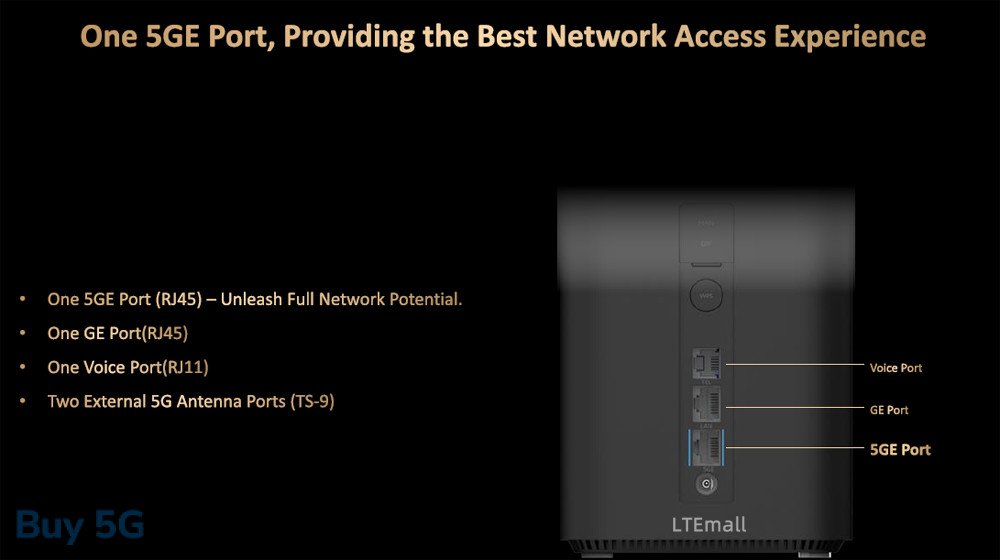

● High-Speed Wired Ports: It includes a crucial 5 Gigabit Ethernet (5GE) port alongside a standard GE port, allowing connected devices like PCs or high-end switches to fully utilize the ultra-fast 5G speeds.
● Exceptional 5G Signal Strength: Equipped with high-gain internal antennas (up to14dBi) for superior 5G signal reception and coverage, and includes two TS-9 ports for optional external antennas.

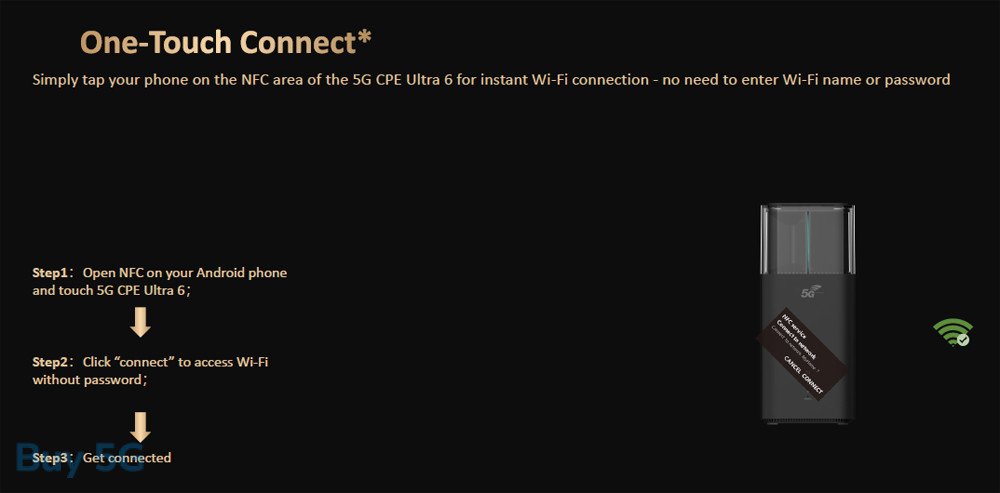

● Multi-User & Smart Features: Supports up to 128 connected users and integrates smart features like NFC One-Touch Connect and EasyMesh for seamless network setup and expansion.

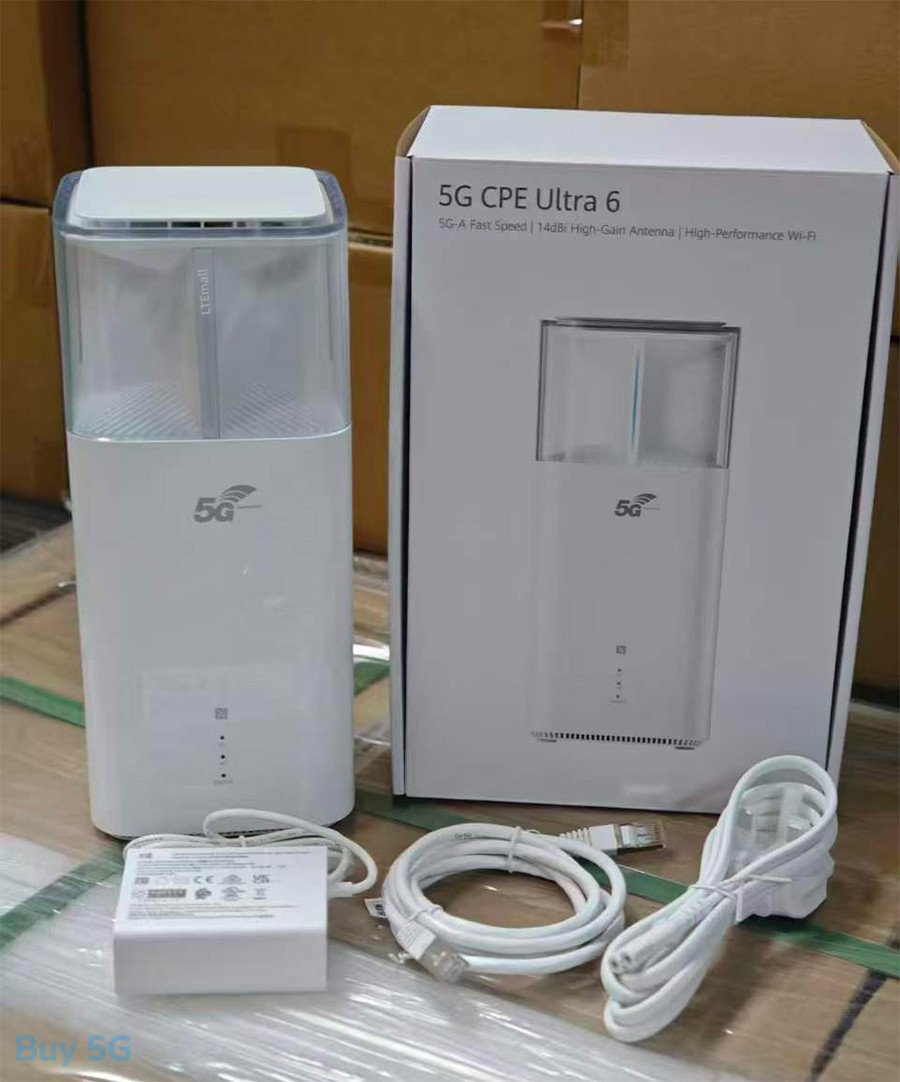

Packing List
- HUAWEI Brovi 5G CPE 5 Ultra H168-383 *1
- RJ45 Network Cable*1
- Power Charger*1 (EU or UK)
Device Status
- New and Unlocked Global Network
- We open box to test device sometimes before shipment.

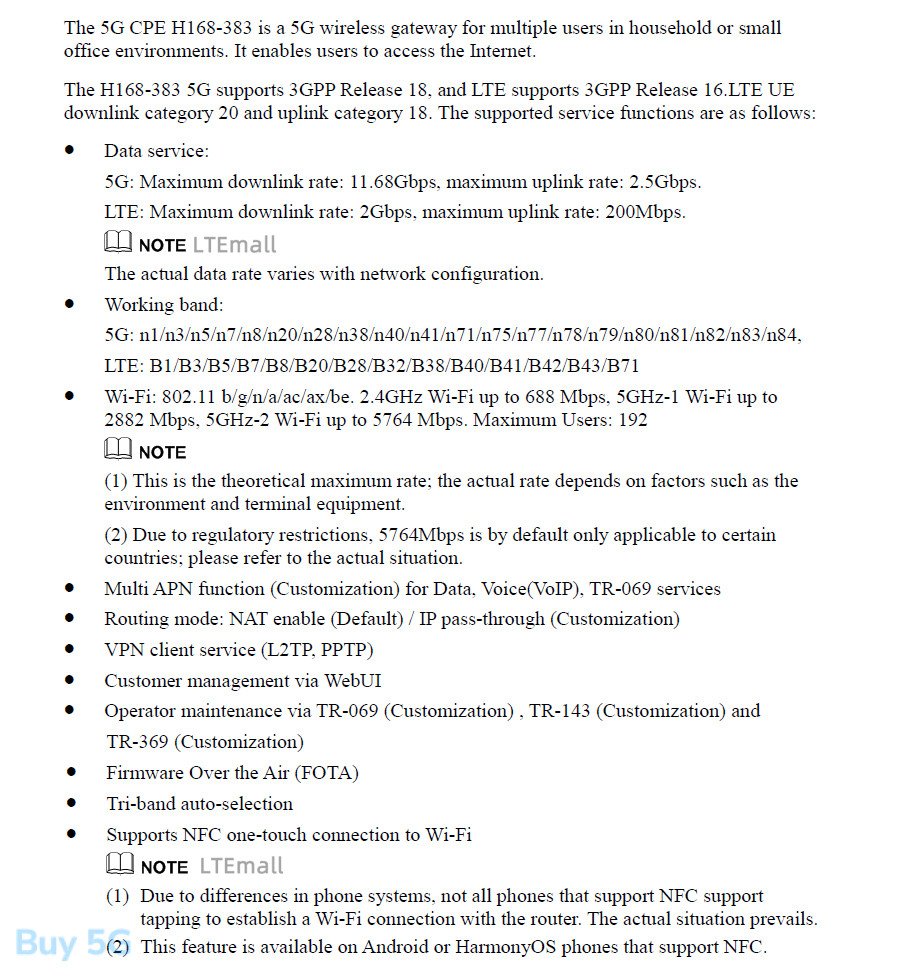

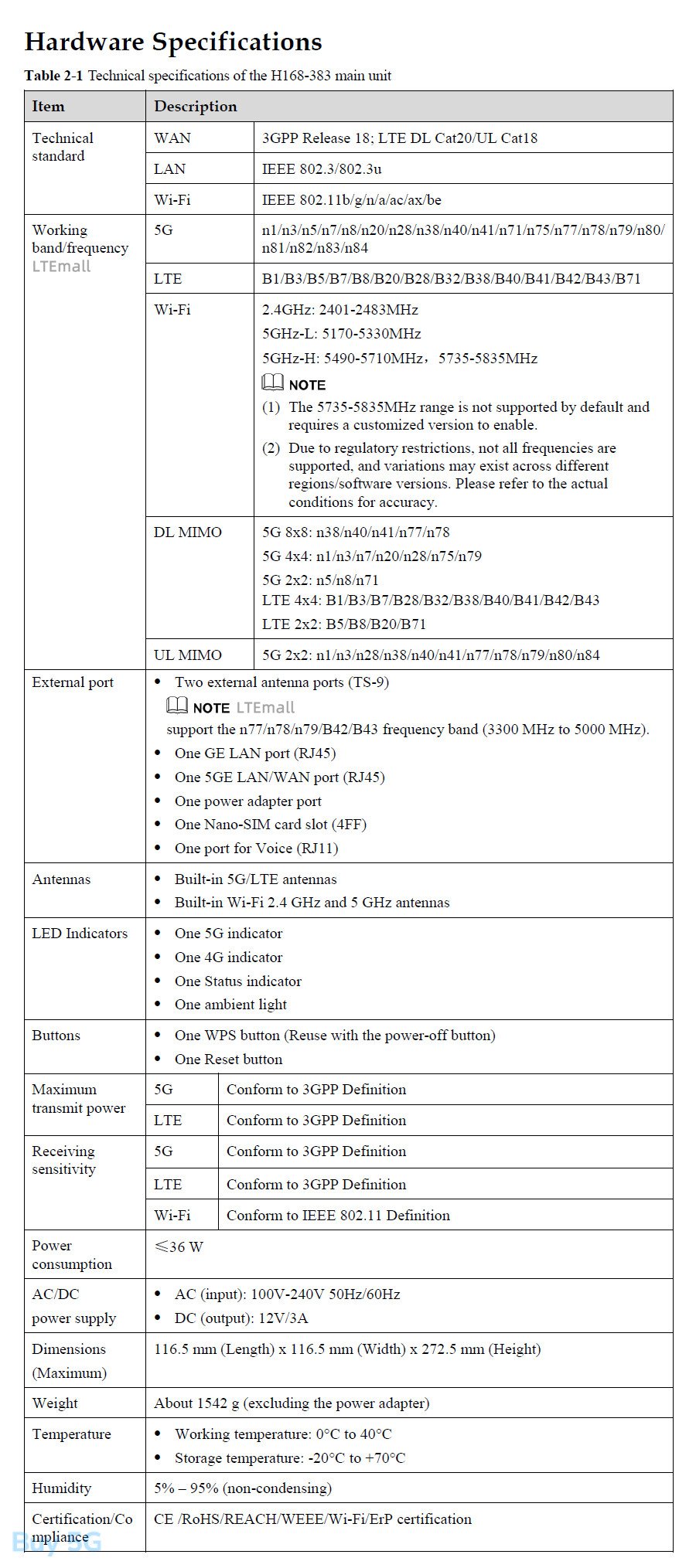

Technical Specifications
3GPP
- 3GPP protocol
- Release 18
- 5G-4G interworking
- NSA option 3/3x, SA option 2
5G Frequency Band
- FDD: n1/3/5/7/8/20/28/71/75
- TDD: n38/40/41/77/78/79
- SUL/SDL
- SUL: N80/81/82/83/84
4G Frequency Band
- B1/3/5/7/8/20/28/32/38/40/41/42/43/71
- MIMO 4*4: B1/3/7/28/32/38/40/41/42/43
- MIMO 2*2: B5/8/20/71
Bandwidth
- TDD: 100/90/80/70/60/50/40/20/15/10MHz
- FDD: 50/40/30/20/15/10/5MHz
DL MIMO
- 8*8 MIM0 DL: N38/40/41/77/78
- 4*4 MIM0 DL: N1/3/7/20/28/75/79
- 2*2 MIMO: N5/8/71
UL MIMO
- 2*2: N1/38/41/77/78/79 (SA only)
- DL/UL modulation
- DL 1024QAM/UL 256QAM
- DL/UL Peak throughput
- 5G NR 11.7Gbps/2.5G (@200MHz+8x8MIM0 or 4CC 400MHz 4x4MIM0, Full-timeslot theoretical rate)
- 5G NR 9.36Gbps/500Mbps (2CC 200MHz 8x8MIM0 or 4CC ratio)
- 5CC@DL, 2CC@UL
Antenna
- Antenna Gain 14dBi
Wi-Fi Protocol
- WiFi 7 2*2+ WiFi 6 4*4
- WiFi 7, tri-band (2.4GHz + 5GHz-L + 5GHz-H)
- 802.11 a/b/g/n/ac/ax/be
- WiFi 7 BE3600
- WiFi User Max up to 128
Mesh
- Easy Mesh, Mesh+
- NFC
- One touch connect
Interface
- 1RJ45*5GE+1RJ45*1GE (1LAN/WAN+1 LAN)
- 1* RJ11 for voice
- 2* External antenna interface
- 1* SlM card slot(4FF)
- 1* Power Interface
