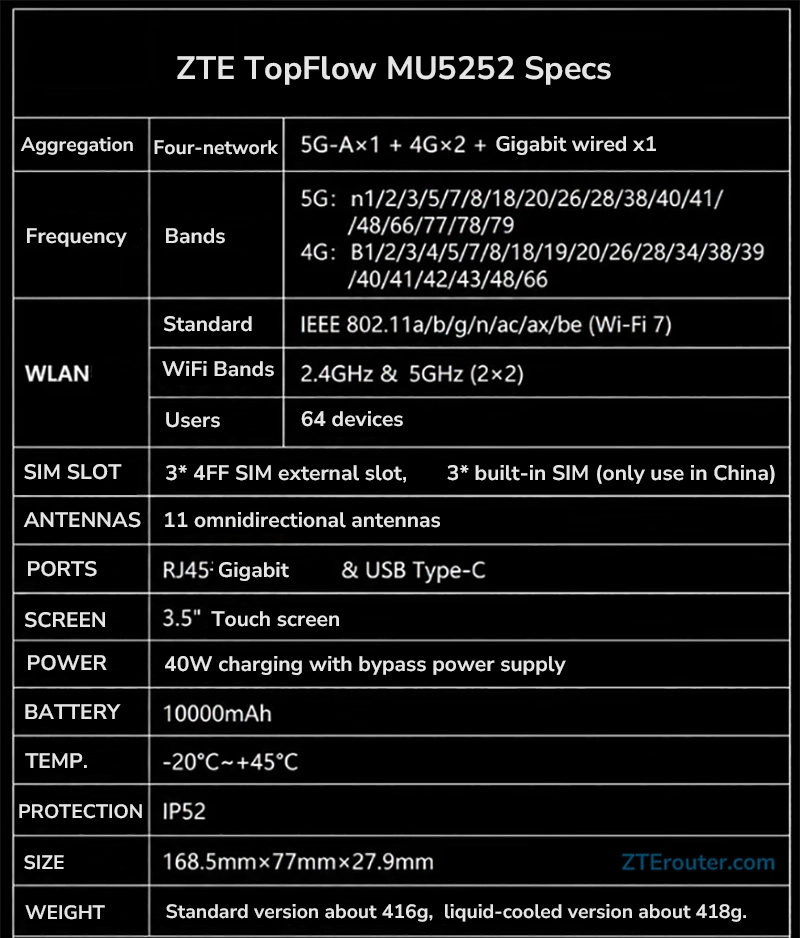

Specifications
| 5g mode | buy5g.com, NSA & SA |
|---|---|
| 5g bands | N1, N2, N3, N5, N7, N8, N18, N20, N26, N28, N38, N40, N41, N48, N66, N77, N78, N79 |
| 4g bands | FDD, B1(2100), B2(1900), B3(1800), B4(1700AWS), B5(850), B7(2600), B8(900), B18(850), B19(850), B20(800), B26(850), B28(700), B66(1700), TDD, B34(TD2100), B38(TD2600), B39(TD1900), B40(TD2300), B41(TD2500), B42(TD3500), B43(TD3700), B48(TD3600 ) |
| Battery | 7000-10000 mAh |
| Data port | 1*Type-C |
| Lan ports | 1 |
| Wifi | WIFI 7 |
| Support users | 64 devices |
| Usage |
Description
Standard version: No pulsating liquid-cooled engine.
Liquid-cooled Version: With pulsating liquid-cooled engine.

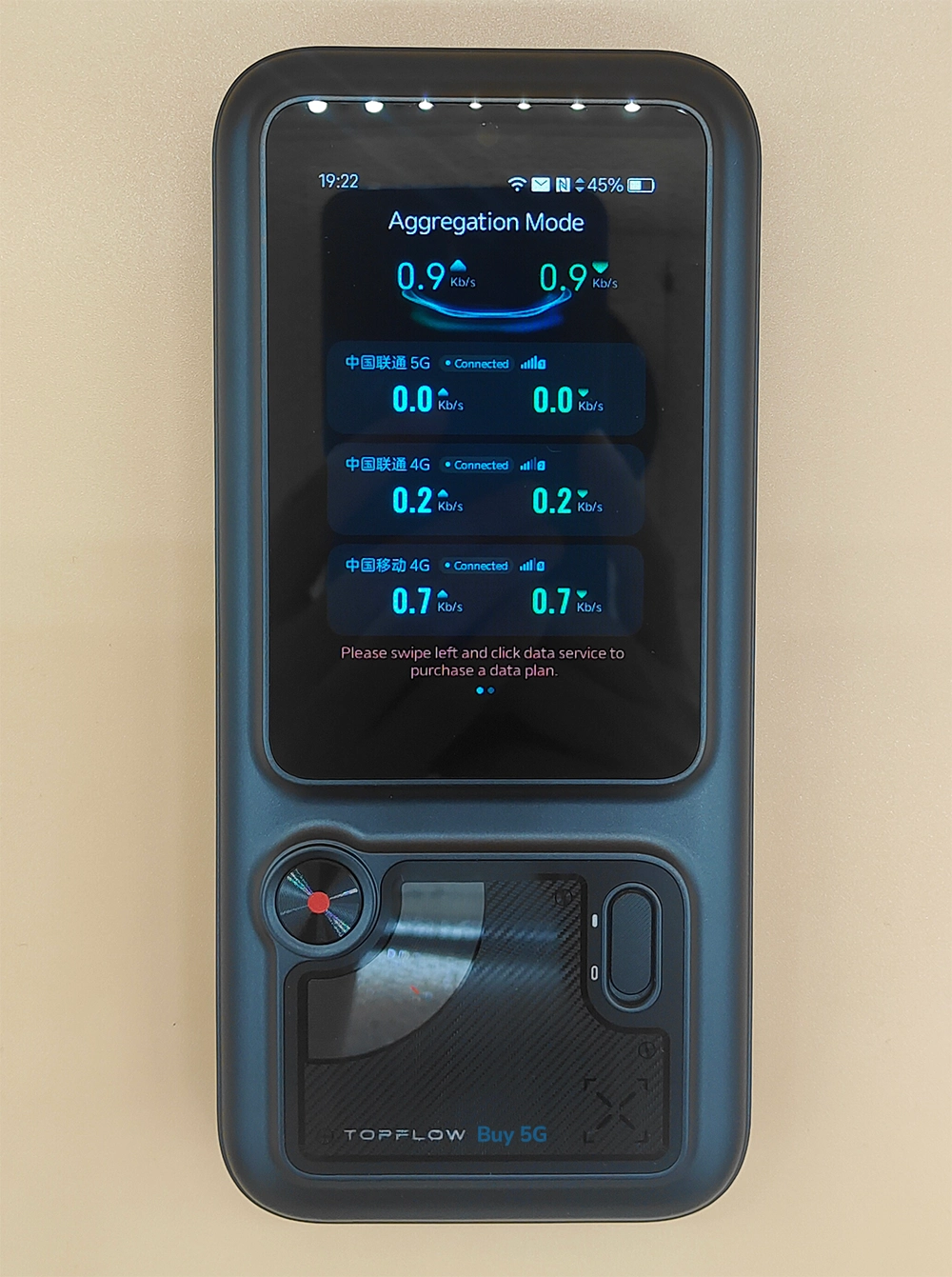

Multi-network aggregation, stable live streaming
Live streaming can be tricky when the network is unstable. Signals are inevitably affected by weak coverage, congestion, and rapid movement. The ZTE TOPFLOW four-network aggregation, 1*5G + 4G*2 + gigabit wired,effectively boosts network connectivity, reducing lag during live streams. It’s perfect for weak signals, crowded networks, or high-speed movement situations. No more stressing over which network to choose before going live,the more connections, the stronger. You focus on your content, I’ll focus on stability.

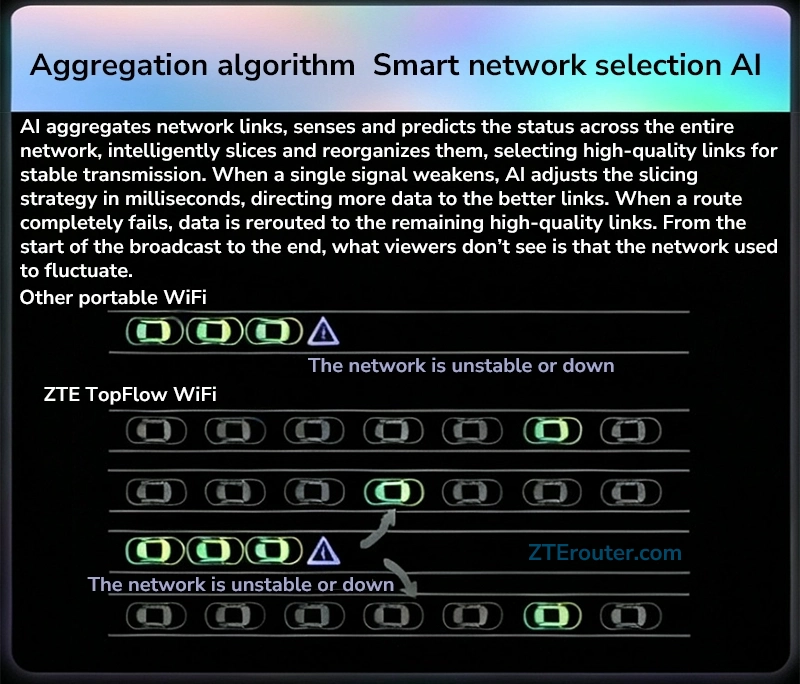

Aggregation algorithm Smart network selection AI
AI aggregates network links, senses and predicts the status across the entire network, intelligently slices and reorganizes them, selecting high-quality links for stable transmission. When a single signal weakens, AI adjusts the slicing strategy in milliseconds, directing more data to the better links. When a route completely fails, data is rerouted to the remaining high-quality links. From the start of the broadcast to the end, what viewers don’t see is that the network used to fluctuate.
SGS certified, stable and reliable
Certified by the internationally recognized testing agency SGS: ZTE TOPFLOW has the ability to quickly connect to mobile networks and offers excellent network stability. Whether it’s live streaming in scenic spots, promoting products in shopping areas, or livestreaming factory tours, you can enjoy smooth outdoor HD streaming.
Qualcomm X75 flagship chip
The X75 chip comes with a built-in dedicated AI tensor accelerator, boosting AI computing power 2.5 times* compared to the previous generation, providing strong computing power for aggregation algorithms. Compared to regular 5G, 5G-A offers significantly higher uplink and downlink speeds. With 3CC carrier aggregation technology, three frequency bands merge into a super-wide channel for gigabit-level high-speed transmission, handling multiple devices and heavy traffic smoothly. The N79 ultra-high-speed band ensures fast channels even in high-density environments.

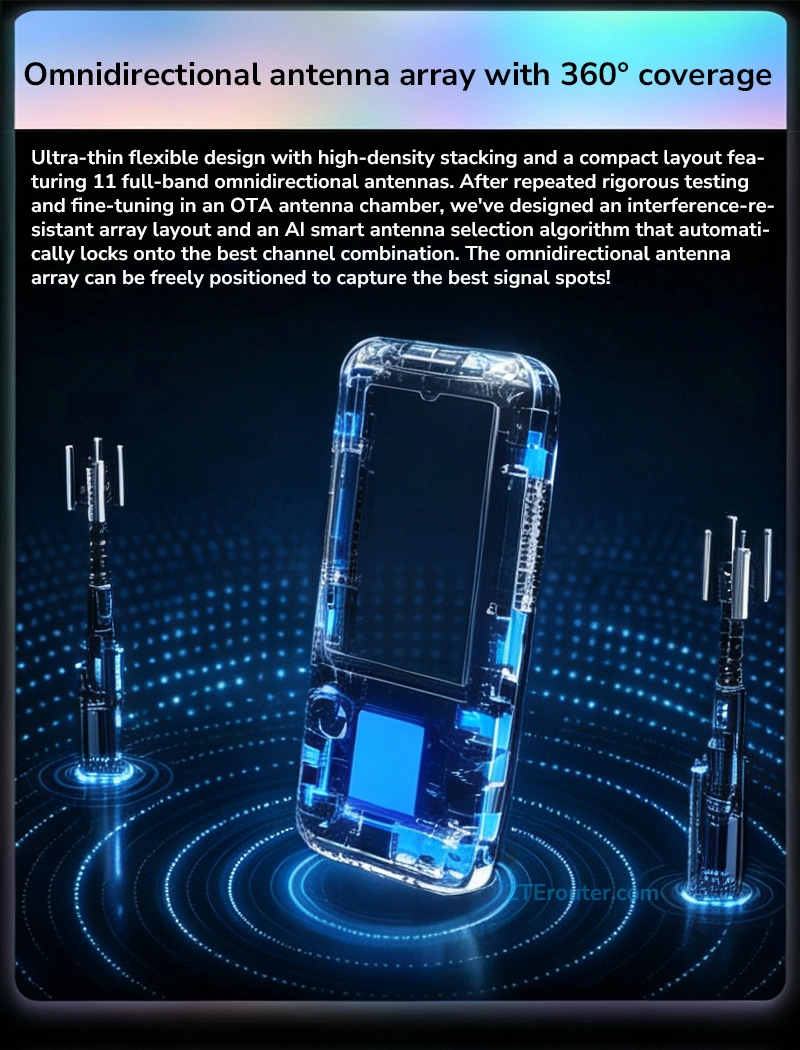

Omnidirectional antenna array with 360° coverage
Ultra-thin flexible design with high-density stacking and a compact layout featuring 11 full-band omnidirectional antennas. After repeated rigorous testing and fine-tuning in an OTA antenna chamber, we’ve designed an interference-resistant array layout and an AI smart antenna selection algorithm that automatically locks onto the best channel combination. The omnidirectional antenna array can be freely positioned to capture the best signal spots!
Wi-Fi 7
Thanks to MLO multi-link aggregation technology, devices can connect to both 5GHz and 2.4GHz bands at the same time, coordinating the use of band resources.
With a super wide 160MHz bandwidth, compared to 20/40/80MHz, the channels are much wider, upgrading a single lane to multiple lanes.
HD streaming and large file transfers—everything is faster, with lower latency and fewer dropped packets.

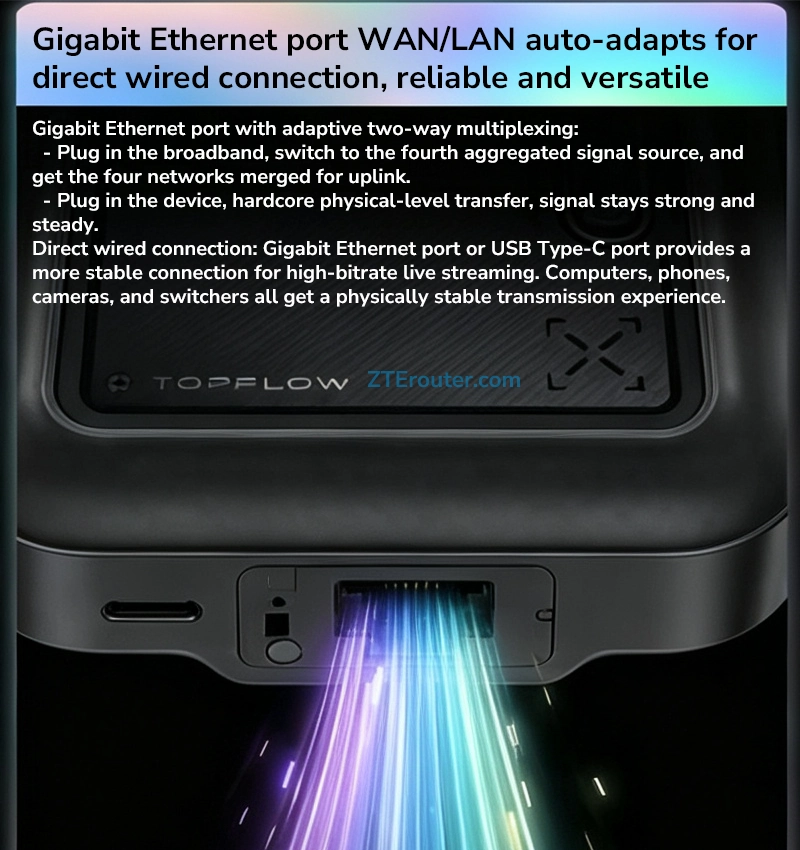

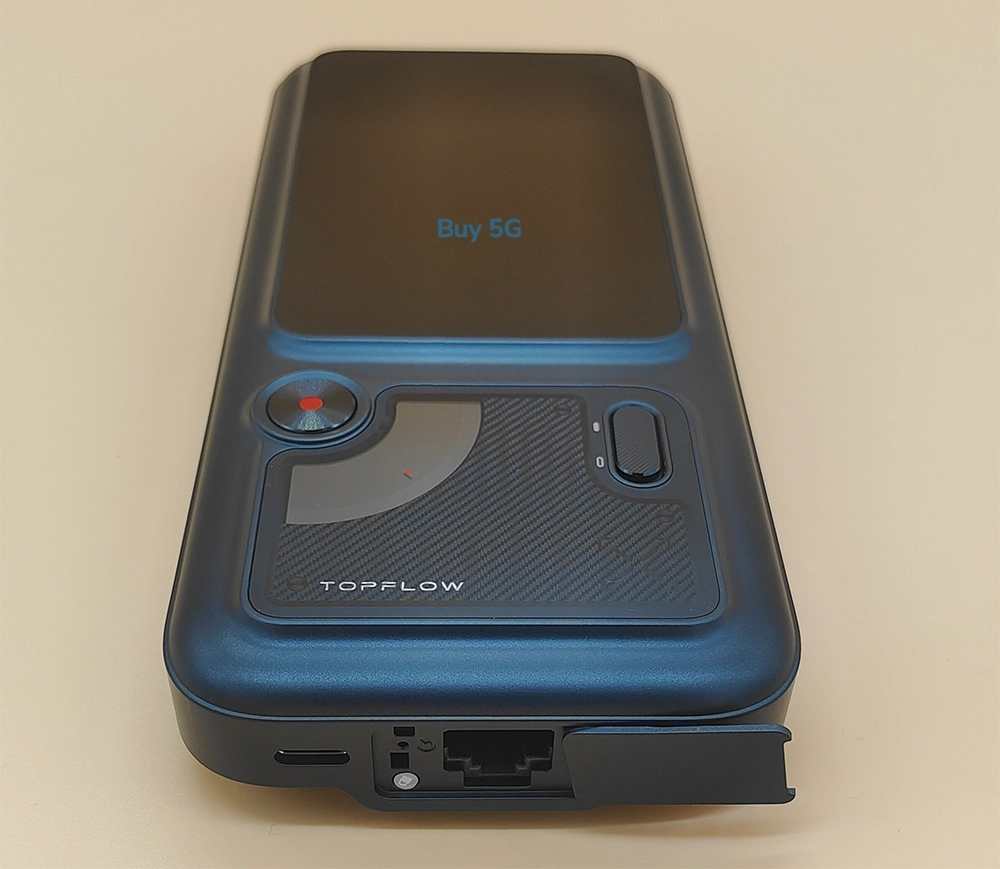

Gigabit Ethernet port WAN/LAN auto-adapts for direct wired connection
Gigabit Ethernet port with adaptive two-way multiplexing: – Plug in the broadband, switch to the fourth aggregated signal source, and get the four networks merged for uplink. – Plug in the device, hardcore physical-level transfer, signal stays strong and steady. Direct wired connection: Gigabit Ethernet port or USB Type-C port provides a more stable connection for high-bitrate live streaming. Computers, phones, cameras, and switchers all get a physically stable transmission experience.

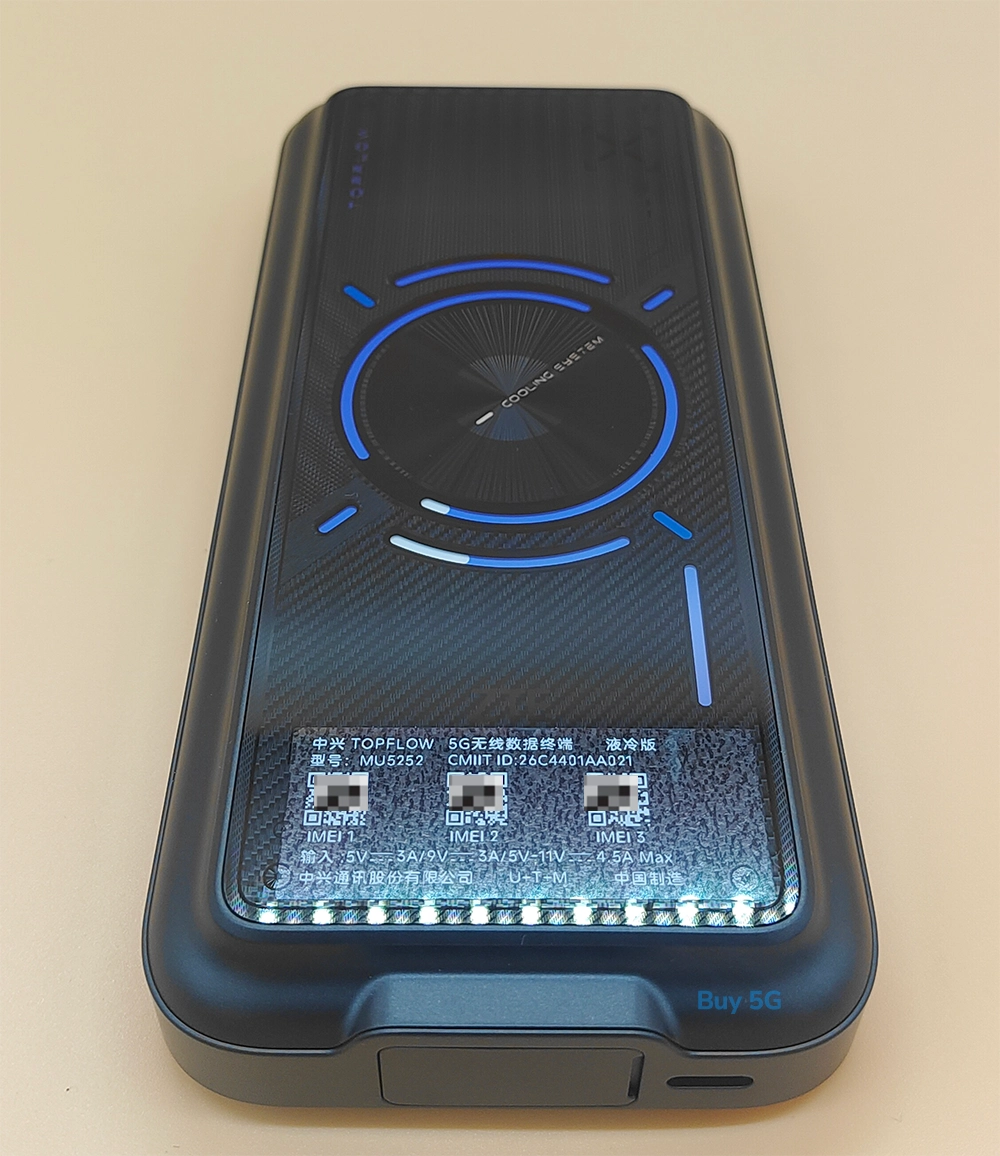

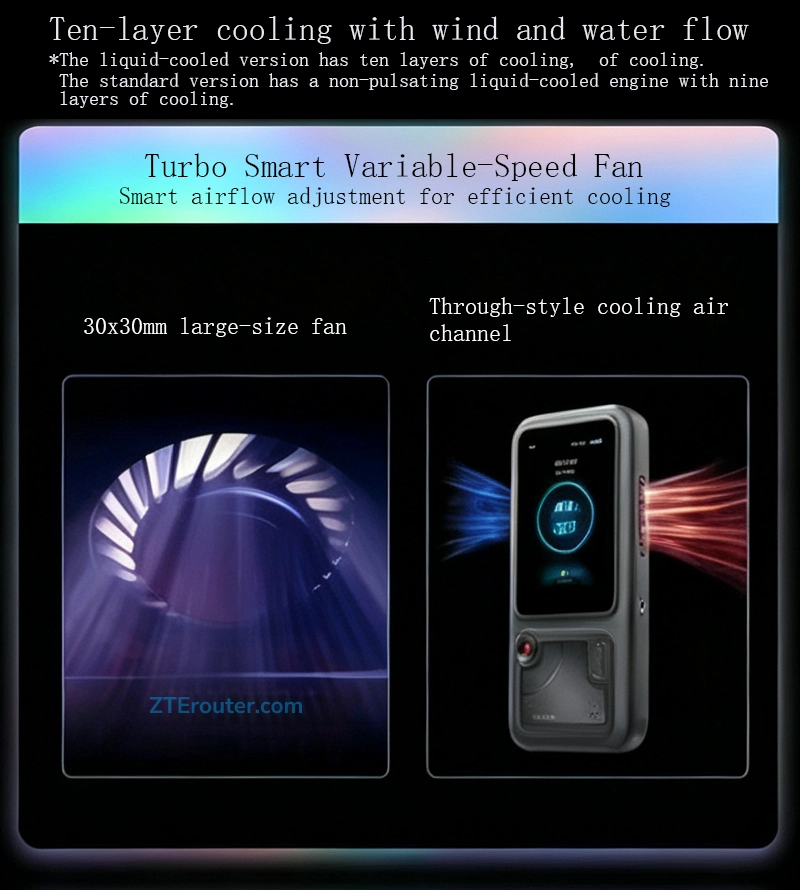

Pulsating liquid-cooled engine(The Pulsating Liquid-Cooled Engine is the liquid-cooled version)
They introduced a server-level liquid cooling solution, which carries heat better than traditional cooling. Using an ultra-thin piezoelectric ceramic micro pump, it keeps the coolant circulating to take away core heat, avoid hot spots, and boost cooling performance under heavy loads.
