Specifications
| 5g mode | NSA & SA |
|---|---|
| 5g bands | N1, N3, N8, N20, N28, N40, N41, N77, N78 |
| Lte category | LTE Cat4 150Mbps |
| 4g bands | FDD, B1(2100), B2(1900), B3(1800), B4(1700AWS), B5(850), B7(2600), B8(900), B12(700), B20(800), B25(1900), B28(700), B32(1500), B66(1700), TDD, B38(TD2600), B40(TD2300), B41(TD2500), B42(TD3500) |
| Lan ports | 2 |
| Support users | 128 devices |
| Wifi | AX3600, WIFI 6 |
| Data port | 1*Type-C |
| Usage | CPE |
Description

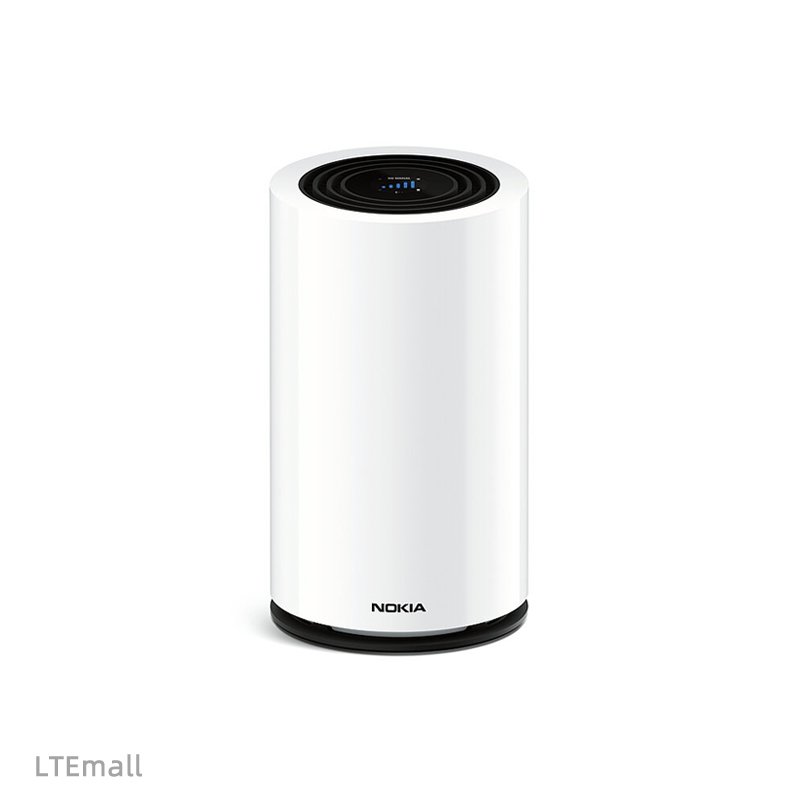

Model (5G12-13W-B)
✅Wifi ax3600(wifi 6)
✅LCD view display
✅Touch screen with multifunction
✅ Qualcomm SDX55 5G chipset
✅Qualcomm IPQ 8072A
✅Dual band wifi 2.4Ghz and 5Ghz
✅Up 128 Devices
✅Max speed wifi 3.6Gbps
✅Lan 1Gbps
✅5G NSA/SA
5G NR antenna gains • n7/n38/40/n41/n77/n78: 3-6.5 dBi • n1/n3/n66: 3-4 dBi • n8/n20/n28: 0-2dBi LTE antenna gains • B7, B38, B40, B41, B42: 3-5 dBi • B1, B3, B2/B25, B4/B66, B32: 2-4 dBi • B5, B8, B12/B28, B20: 0-2dBi
Wi-Fi The device is also compliant with 802.11 a/b/g/n/ac/ax. The device supports up to 128 clients per band and per service set identifier (SSID), and the device supports a total of 128 clients.
Dimensions Diameter 125 mm (4.92in) x Height 218.5 mm ( 8.58 in) Weight <1400 g (2.5 lbs) without the power adapter
SIM card 4FF/nano-sized SIM slot Power 12V DC power adapter consumption: < 36W
